Last change: 15.06.2017

GuzziDiag / IAWDiag and Tools


ATTENTION !!!

As noted in the software: the software is not for sale!
If you find an advert at ebay, you pay only for the hardware.
49 EUR for the hardware is too expensive.
If you already bought it... You can give it back during a specific time.
(14 days without reasons according to german laws)

Search for a cheaper solution.
Half of that price is realistic. (You can donate the rest :) )


GuzziDiag V0.47

Changelog

Program

MD5 checksum

Windows32f0fdba1b589ba44ea25d83dbcdfdc8
Linux x861a203029dc8b426fb6fd3917add76a5b
Linux x640ca53d63f12d54f3a3bccccdde879796
Mac OS Xbea10909494b2410f546462d1baf70fb

IAWDiag V0.47

Changelog

Program

MD5 checksum

Windowsdda3b62901f72ca5d4baa997a531bdb3

IAW15xReader V0.67 (15M, 15P, 15RC)

Changelog

Program

MD5 checksum

Windows354df47a2a00264f09f576b8677be969
Linux x8678a0d7fb0edac3d7aa583ac27190ff8c
Linux x6451211c951b923a728bbb3fa800264977
Mac OS X4d6feb4a6e863a243934f07b9ef31502

IAW15xWriter V0.26 (15M, 15P, 15RC)

Changelog

Program

MD5 checksum

Windows502d9c3e6fefcbeeebbb8be17a1dfacc
Linux x8675e2a3551e07135518285522dfe57b77
Linux x64b78368bc7621e6a8e5e085911b382027
Mac OS Xf3302c9d3906aafa255b5d624c08f8bf

IAW15xEEPROMTool V0.04 (15M, 15P, 15RC)

Changelog

Program

MD5 checksum

Windows81287a9964e35a9e1a4ae2420e745b06
Linux x865814817f61536ef14203458dc5b3da75
Linux x6446a210e8c35480fd6f5e3494d56a104c
Mac OS X38718004a993d18c22786161d2e7cc42

IAW5xReader V0.28 (5AM, 59M)

Changelog

Program

MD5 checksum

Windows8fd8de288375f3ff02375790812d7f58
Linux x86ea534df35df95350f865eafa2c4e8734
Linux x6482f3ee2cd59311d3fc8098a1b818f441
Mac OS X0570b48a8f51dc28430830d2fc4386a2

IAW5xWriter V0.24 (5AM, 59M)

Changelog

Program

MD5 checksum

Windows983785d23937797f0a3eb8babf679bfa
Linux x863852fb2543c7d851a87e9722bb3462bb
Linux x64a6511328961bb1e86603432df1e8e500
Mac OS X3ea3fb28b5f32a5ab3105c0deaa8a4e5

IAW5AMEEPROMTool V0.03 (5AM)

Changelog
a85a6a80ced5e8ec753da17a5f430b38

Program

MD5 checksum

Windows
Linux x86169cfef2ab04d364f6e4cdbc66045613
Linux x643cf2b112834fcff336b313ead9bbfd3d
Mac OS X8c2eb7cb57336cc3100c4c1217bcc021

IAWMIUG3Reader V0.04

Up to now we collected:
V73523
V7352BV737
V7352BV738
V7 II4533V740
V7 II4533V795
V7 II4533V796
Changelog

Program

MD5 checksum

Windowsabf5dc4626f90a16d95ea41270b1355d
Linux x86f569f4ce32f6f6bd1b9be09d190c582c
Linux x64a18baea363b10e5cbbabf11e9462a6ad
Mac OS Xa308a0bd4edaddae745dcd42b8babad6

IAWMIUG3Writer V0.03

Changelog

Program

MD5 checksum

Windowsa39880f92f9dfc30c83979c605ed8047
Linux x861944146241e283bc21e3148dab735c0f
Linux x6455da72f6be09cb147626dab9040d62d1
Mac OS X7bcad7cc05d8e13b8bc7a1663b67127d

IAWMIUG3EEPROMTool V0.02

Changelog

Program

MD5 checksum

Windowsc945afaddeaf8185fe3e223b7aaf5853
Linux x86ba324f51ad9e2f5a2491582f3ea43b0a
Linux x6402f894fecb25c4c0028f8551b8ecfbd9
Mac OS Xc286ae5665c90e6b74717c5a5e218a4c

RPMSensorEmu V0.17

A tool to emulate the phonic wheel for an ECU on the desk
Changelog

Program

MD5 checksum

Windows56f94b6959dda0430cc07368b7bc9031

GearSpeed V1.35

A tool to see the speed at diffferent transmission ratios

Program

MD5 checksum

Windows469071ca27430023939e8f1705579ebe
Linux x8636125ced64662f6689d4572f4cb6856c
Linux x6422a2c377298ad80125955305277ce760
Mac OS X49af3c974464bd312fb4085f8ec00f21

ZT2CSVToLogWorksDIF V0.71

A tool to convert Zeitronix ZT-2 CSV files to LogWorks DIF format
(The timeline is incorrect by factor 4, since the ZT-2 logs 4 times more data)
Changelog

Program

MD5 checksum

Windows1365b3b727cd65a7fad96dcc54c37f28

FTDI Driver/Treiber

Windows Mac OS X
Or go direct to the FTDI driver page

AdapterTest V1.01

Windows
Linux x86
Linux x64


All OSs:

Make sure that no screensaver becomes active while you are running Reader or Writer.
This would disturb the data transfer and the connection will be lost.
Also virus scanners can make problems. If your are in doubt, disable it temporarily.
All programs need write access to the directory where they resides (ini file).

Windows hints:

If you have problems with connection or breaks during connection,
then stop all programs which are running in the background.
Your taskbar in the right lower corner should be nearly empty.
If the devicemanager shows a working COM port, but nothing works, disable virus scanners.

Linux hints:

The USB adapter is searched as /dev/ttyUSB*, where * is a placeholder.
/dev/ttyUSB* has 660 as rights per default.
So you need to change this, or use: sudo ./GuzziDiag_Vx.xx to start it.
You can also add yourself to the linux group dialout, than you are also allowed to use it.
A directory ~/.local/share has to be available. But that should be the case.

Mac OS X hints:

The USB adapter is searched as /dev/tty.usbserial*, where * is a placeholder.
If your finder is blinking:
try to convert the app to a self growing diskimage.
It was reported that this solves the problem.
From OS 10.9 onwards Apple uses its own USB driver for FTDI.
In a forum thread it was written that this also causes problems.
There are some commands to disable the internal driver (see FTDI PDF),
or search for a program which disable the original driver.
Just installed 'el capitan' OSX 10.11.3. The FTDI device is working out of the box.

Die Benutzung der Software erfolgt auf eigene Gefahr!
Keinerlei Haftung!

The usage of this software is at one's own risk!
No liability!




FTDI Driver Windows:

If you have problems to get a connection try to install version 2.08.14 of the driver.
It looks like that version 2.08.28 and .30 has problems with the new FT232R chip in some constellations.
2.08.14 as self-installing exe.
With this, you can istall the drivers before plug in the adapter the first time.
So the newer windows versions does not start to search for a driver on the net.

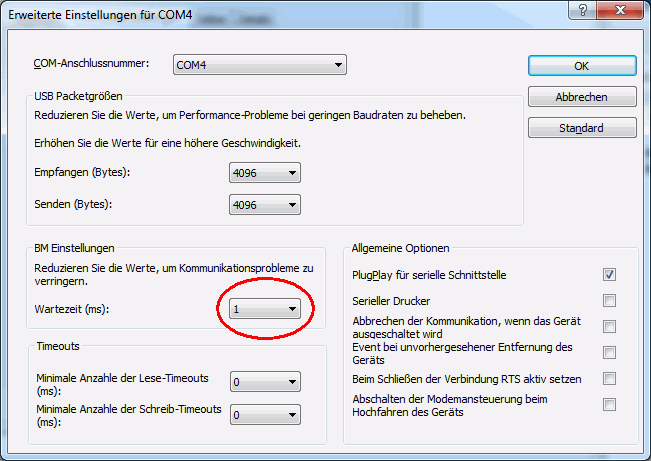

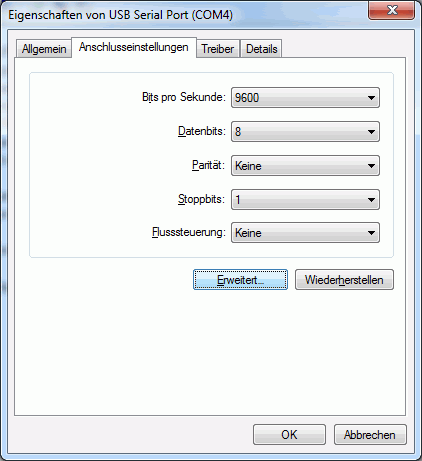

FTDI Settings Windows:

Treiber EinstellungenTreiber Einstellungen


If connection stops in between, you can try to reduce both 4096 values to 2048.



TunerPro XDF files

Moto Guzzi

P7

16k EPROM V1.26

P8

32k EPROM V1.30

16M

32k EPROM V1.23
64k EPROM V1.23
64k Daytona RS Kit V1.21

15M

V2.28
Old Quota V2.28
Cali 61600.381.00 V2.52
EEPROM V1.01

15RC

V7 V2.16
V11/Cali V2.16
EEPROM V1.01

5AM

One Lambda V1.29
Two Lambda V1.31

MIUG3

V7 V1.07
V7 II V1.11
V9 V1.08

Others

Aprilia

Atlantic 500ie (1P0Z) V1.02
RS4 125 CM088115 V1.02
RS4 125 CM227201 V1.00
SR MAX 300ie V1.02

Ducati

16M 748 916S V1.10
15M 750SS V2.28
15M M900 V1.0
59M Monster S4 2002 V1.28
59M SS-800 V1.28
59M 1000SS V1.28
5AM S2-800R V1.28
5AM 848 V1.0
5AM 848 96519408B V1.0
5AM StreetFighter V1.28
5AM S4R 996 Monster V1.0
5AM S2-1000R DP V1.28
5AM ST3 S ABS 96517506B V1.28
5AM MTS1000 HW103 V1.0
5AM MTS1000 HW610 V1.0
5AM Multistrada 1100 V1.28
5AM Hypermotard 1100 V1.0
5AM 1098 S DP V1.1
5AM 1198 328641831D V1.27
5AM 1198 DP 96520311B V1.27
5AM 1198 3213 PQ58 V1.27
5AM SC1000 Monoposto (DP) V1.35
5AM SC1000 Monoposto (Stock) V1.35
5AM SC1000 Biposto (Stock&DP) V1.35

GasGas

450FSE V1.02
450FSR V1.02

Gilera

Nexus 500ie (1P10) V1.02

Morini

Sport GP 95 Scrambler V1.22
GP 2 Lambda V1.22
Corsaro V1.24

Piaggio

Beverly X8 400ie (1P10) V1.02
Beverly X9 500ie (1P0Z) V1.02
Beverly 500ie (1P0T) V1.02
Beverly 500ie (1P0Z) V1.02
Fly 3V V1.01
Beverly CM085204 34B9BU42 V1.00
Beverly CM085209 4528BU53 V1.00
GTS300 V1.02
